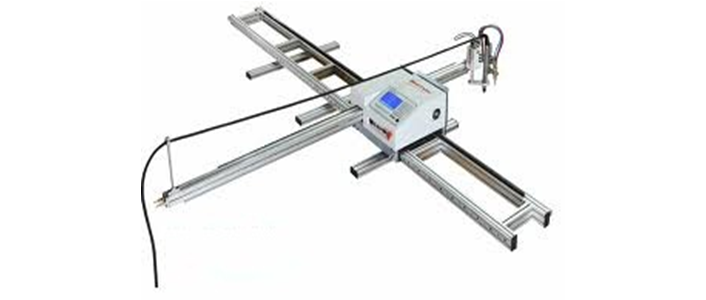

PORTABLE CNC CUTTING MACHINE
Yash Machine presents portable machining equipments with CNC functionality. Our ranges of compact cutting machines are custom made and suits for specific industrial machining requirement. We provide two types of portable cutters embedded with CNC component. These models are developed as per the customer requests and they are made of highly tensile material. Our portable cutting machines are also known for durability and long term flawless performance.
Portable CNC cutting machine available at Yash Machine Tools are designed by engineers considering latest upgrades and competitive specifications available in present market. It is completely optimized and suits specific industry to carry out exclusive cutting operations. Its portability also remains user friendly for operators. Industries which are in need of high speed and uninterrupted performance can depend on portable CNC cutting machine.
Main Features:-
- Totally upgraded to ensure the optimized structure
- Advanced stability and precision
- More user friendly
- Higer speed and Better Stability
Main Features:-
Portable CNC Cutter works with input voltage of 110/220V and frequency of 60/50HZ. The required input power is 180W. As far as CNC features are concerned, this equipment is provisioned with 7” LCD color screen display to monitor the complete performance and also equipped with CAM standard version and MTC standard version software.The cutting speed is 0-6000mm/min and the cutting ranges from 1.8m*3.0m with a width of 1.5m, 1.8m, 2.0m and length of 4m, 5m, and 6m to 15.0m. Our portable CNC cutter can cut work materials of thickness ranging from 6mm to 150mm. The types of metals that can be handled with our compact CNC cutter are carbon, steel, stainless steel, aluminium, etc.
Technical Specification:-
| Type | Valiant 2.0 |
| Input Voltage | 110/220V |
| Frequency | 60/50 Hz |
| Input Power | 180 W |
| Display | LCD 7" color Screen |
| Effective Cutting range | Standrard Size:1.8mx3.0m Customized Size: Width:1.5m, 1.8m, 2.0m Length:4m, 5m, 6m…….15.0m |
| Cuting Speed | 0-6000mm/min |
| Cutting Thickness(Flame) | 6mm-150mm |
| Torch Height Control | Automatic arc voltage THC |
| Cuting Material | Carbon stel/stainless steel/aluminium.etc |
| Cutting Software | Fast CAMstandard version MTC standrard version |
| Net Weight | 130kg |
| Gross Weight | 180kg |
PORTABLE GANTRY CNC CUTTING MACHINE
This is a revised version of traditional Gantry type cutter. It can cut as wide as 3.5mm width and it is equipped with dual drive. Our compact CNC Gantry cutters are equipped with automatic arc voltage THC torch height control. We give optional software including IBE CNC Cut basic version, fast CAM standard version and Hypertherm Nestmast Basic Version. Consumers can choose suitable software. The input voltage is 110/220V and frequency is 60/50Hz.
Main Features:-
- Portable Gantry
- Cut as Wide as 3.5mm
- Dual drive,more stable!
- Easy installation!
Specifications of CNC Gantry Cutter
Gantry cutters require a little higher input power than portable CNC cutters. The specialty of Gantry cutter is the cutting range which is 250mm/3000mm/3500mm along X-Axis and Standard 3000mm along Y-Axis. When it comes to CNC components color LCD 7” Display has been provided for both portable and Gantry type cutter. Mode of cutting operations possible with our Gantry CNC cutting machine is both Type A Plasma cutting as well as Type B Plasma. Yet another special functionality of Gantry cutter is that it can be applied to cut along Z-Axis stroke up to a length of 80mm. As far as installation is concerned, gantry type CNC cutters are easy to install and it requires moderate space.
Yash Machine Tools has been service several industries with wide range of workshop friendly machining components. We are one of the leading machinery suppliers and have been supplying to industries worldwide. Our Machineries are customized as per industrial requirements and pricing has always been competitive.
Technical Specification:-
| Type | DRAGON I |
| Torch Height control | Automatic Arc voltage THC |
| Cutting Software | IBE cncCUT Basic Version fastCAM standrard version(optional) Hypertherm Nestmast Basic Vrsion |
| Input Voltage | 110/220V |
| Frequency | 60/50Hz |
| Input Power | 200 W |
| Display | Color LCD 7" |
| Effective Cutting range | X-Axis:250mm/3000mm/3500mm Y-Axis:Standrard 3000mm |
| Cuting Speed | 0-4000 mm/min |
| Dry Speed | 6000 mm/min |
| Positioning Accurancy | 0.2mm |
| Repeatability | 0.2mm |
| Cross Beam Length | Flame: 5 "150mm |
| Cross Beam Length | 3500mm/4000mm/4500mm |
| Longitudinal Rail Length | Effective cutting length +600mm |
| Mode of Cutting | Type A: Plasma Type B : Plasma/Flame |
| Z Axis stroke | 80mm |
| Longitudinal drive mode | Dual drive |
