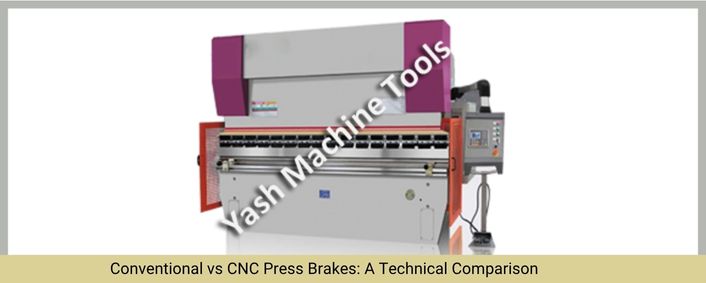

Choosing Between Conventional and CNC Press Brakes: A Technical Comparison

Objective

The objective of this article is to provide a focused technical comparison between conventional press brakes and CNC press brake machines. This includes exploring the mechanical, control and operational distinctions that define each type, highlighting how these differences influence real-world performance, repeatability and precision in metal forming processes.

What Defines a Conventional Press Brake in Technical Terms?

A conventional press brake refers to a mechanically or hydraulically operated bending machine, where angle and bend lengths are controlled manually or semi-automatically. The operator typically adjusts ram depth and back gauge positions using mechanical stops, handwheels or digital readouts.

These machines are primarily analog, relying on dial indicators or scales for setup. There is minimal feedback or real-time compensation during bending. Precision in these models heavily depends on the operator’s experience and visual judgment.

In many metal fabrication shops, conventional press brakes continue to serve due to their simplicity and lower initial investment. However, this simplicity also limits flexibility when working with complex bend sequences or tight tolerances.

What structurally distinguishes a conventional press brake from a CNC press brake?

Conventional press brakes operate primarily on mechanical or hydraulic systems, using manual controls to perform bending operations. These machines rely on the operator to set bend angles, stroke depths and back gauge positions, often through dial indicators, hand wheels or visual approximations. In many workshops, these machines still function adequately for simple, low-volume tasks.

On the other hand, a CNC press brake machine integrates automated controls with precision-driven servo motors and digital interfaces. The key structural difference lies in the addition of numerical control – via programmable software – that governs every mechanical motion. CNC systems may feature real-time sensors, ball screw drives, hydraulic proportional valves and feedback loops that continuously adjust bending parameters to maintain accuracy.

While the mechanical core – such as the ram, die and punch – remains similar in both types, it’s the integration of computer control in CNC brake press machines that introduces a significant leap in structure and capability.

How do control systems influence bending accuracy and repeatability?

A conventional press brake depends heavily on the operator’s judgment and manual measurements. Slight errors in setting stroke depth or back gauge distance may result in inconsistent angles, particularly across long production runs or complex parts. Repeatability in such systems is often variable and may decline as mechanical components wear or drift.

In contrast, CNC press brake machines operate under software-defined parameters. Each bend is executed based on exact numerical input, allowing for micro-adjustments down to fractions of a millimetre. Feedback systems within electric CNC press brakes can detect and correct deviations during operation – ensuring that each part matches the previous one precisely, regardless of operator skill.

This means CNC models not only achieve superior initial precision but also maintain that standard over thousands of cycles. The repeatability factor is further reinforced by digital job storage, enabling identical production even after long intervals.

What role does the back gauge system play in both machine types?

In conventional machines, the back gauge is often adjusted manually. While some models feature digital readouts or motorized movement, these are typically single-axis and lack real-time positioning feedback. Such systems are functional for basic bends but may introduce cumulative error when multiple back gauge adjustments are needed for complex geometries.

CNC press brake machines typically come with multi-axis servo-driven back gauges. The system may include X, R, Z1, Z2 and even delta axes, depending on the model. This allows not only forward and backward movement but also vertical, lateral and independent finger positioning.

As a result, a CNC brake press machine can perform sequential bends with high-speed repositioning between each step – minimizing operator intervention. This accuracy in part positioning plays a critical role in maintaining overall dimensional integrity, especially in multi-step part fabrication.

How do tooling and setup times differ between conventional and CNC models?

Tooling changes in conventional press brakes are often time-consuming and manual. Operators remove, align and secure punches and dies by hand, relying on visual guides and experience. These adjustments may also require shimming or angle verification, further increasing setup time.

CNC press brake machines, particularly high-end or electric CNC press brake systems, often include quick-release clamps, automatic tool alignment and integrated tool databases. The operator can load a program that not only sets the bend parameters but also verifies tooling compatibility, reducing errors before bending begins.

In cases of high-mix, low-volume production – where changeovers are frequent – CNC machines may cut hours of downtime over the course of a shift. This streamlined setup process significantly reduces operator fatigue and contributes to higher throughput without compromising precision.

How both machines compensate for material variability and springback?

Conventional press brakes require manual adjustments for springback, often based on the operator’s experience. Different materials and thicknesses exhibit unique elastic recovery after bending. Without active compensation, this can result in parts that deviate from the intended angle.

CNC brake press machines solve this problem through real-time angle measurement and automatic springback correction. Advanced models use in-process sensors to measure the angle during the bend and adjust force or stroke depth dynamically. This feature becomes particularly valuable when working with high-strength steels or varying batch compositions.

The ability to compensate for such variables not only improves part accuracy but also reduces scrap and rework. These corrections can be embedded into stored programs, ensuring consistent quality across shifts and operators.

How does operator dependency impact both press brake types?

In a conventional press brake setup, the quality of the finished part heavily depends on the operator’s skill. From interpreting blueprints to adjusting angles and understanding material behaviors, the entire process demands a high level of craftsmanship. This can create inconsistencies in multi-operator environments.

CNC press brake machines shift this dependency from skill-based to system-based operation. Once the machine is programmed and calibrated, most of the bending process is automated. The operator primarily handles material placement and program selection, with minimal manual intervention.

This means CNC systems may reduce training time and improve overall consistency across operators. The emphasis shifts from mechanical expertise to digital understanding – making it easier to scale operations without sacrificing quality.

Do CNC press brakes support complex bend sequences better than conventional ones?

Conventional press brakes are suited for simple, one-step bends. Any part with multiple bends requires the operator to reconfigure settings between each operation. This introduces time loss, potential error accumulation and difficulty in ensuring uniformity across parts.

CNC press brake machines, by contrast, excel in multi-bend sequences. They allow complex programs where the machine automatically adjusts the back gauge, ram depth and angle between bends. Some models also simulate the bending sequence virtually, flagging collisions or infeasible bends before the job starts.

This built-in logic not only supports geometric complexity but also enforces safer operation. Multi-axis controllers and simulation software make CNC systems ideal for high-precision sheet metal parts with intricate folding requirements.

How does energy use compare between traditional and electric CNC press brakes?

While conventional press brakes – especially older hydraulic models – operate on constant pump pressure, consuming power even during idle times, electric CNC press brake systems use servo motors that activate only when needed. This may reduce energy consumption and heat generation over time.

The energy efficiency may not always be the primary decision driver, but in high-duty applications or multi-shift production environments, the cumulative power savings and thermal stability of electric-driven systems can be significant.

What is the impact of diagnostics and maintenance in CNC press brake machines?

In conventional systems, identifying wear or mechanical issues relies on operator feedback or physical inspection. Maintenance is reactive and unexpected breakdowns may halt production.

CNC press brake machines come equipped with diagnostic tools that monitor system health. Sensors track servo motor behavior, oil temperature (if hydraulic), alignment consistency and cycle counts. Predictive maintenance can be planned in advance, reducing downtime and improving machine lifespan.

Many CNC machines also alert operators to maintenance intervals, filter replacements or unusual load patterns, helping prevent costly failures.

Conclusion

Choosing between a conventional press brake and a CNC press brake machine is a decision rooted in technical requirements, production complexity and long-term process control. While conventional models may still find use in straightforward bending operations, their limitations in accuracy, repeatability and operator dependency make them less suitable for modern precision work.

CNC brake press machines, particularly electric CNC press brake systems, represent the evolution of bending technology. Through automation, precision control, advanced feedback systems and intelligent programming, they provide consistent, reliable and scalable solutions for complex metal forming tasks.

For operations aiming for repeatability, tighter tolerances and reduced setup time, the technical benefits of CNC systems clearly support their selection.
